SERIES

Solution of XR/Virtual Production

Compatible with
60mm frame system

Cover Plate Tray Functiom

Extend creativity to infintity

Arbitrary splicing of cube cabinets

Unlock 9 Configurations - The DNA of Our Displays

Design Any Shape You Imagine - Join Us!

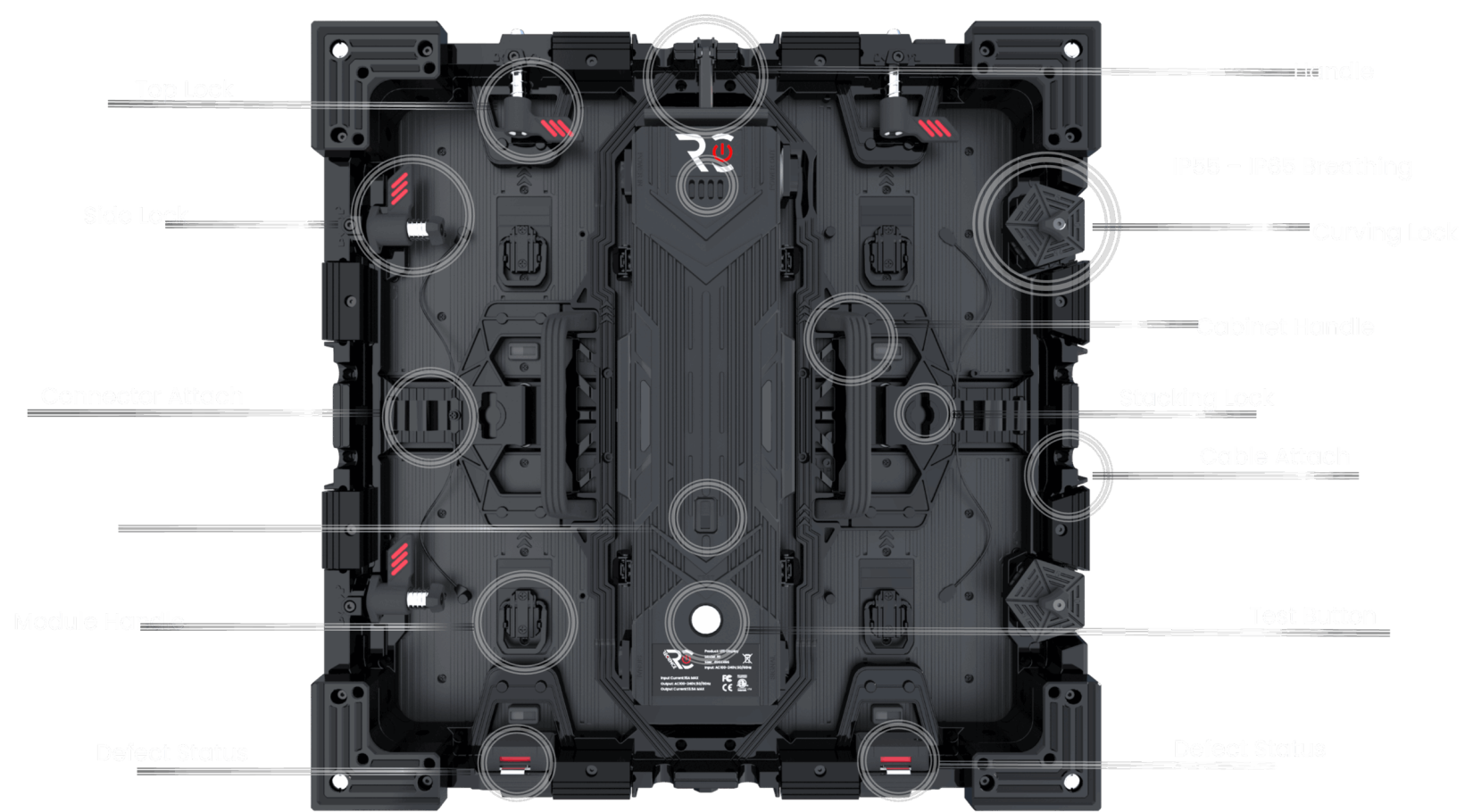

Cabinet

Brainbox

Cabinet Frame

Back Maintenance

Front Maintenance

Modules

Brainbox

RY can be Front / Rear Maintenanced, and it is quick and convenient.

DNA

RY Family Portrait

Square

Flexible

Cube

90° Corner

Round Corne

STAQON Certified

Routine

Flexible

Cube

connection hole

connection lock

Insert the cabinet connection lock into the connection hole, then lock it down. Also, when connecting, you need to remove the corner and corner filler.

When the cabinet malfunctions, move the button to red to indicate a warning.

90° Corner

Easy connection with RY

R158 ¼ circle concave

R158 ¼ circle convex

Round Corne

STAQON Certified

M8 & M6 Pin screw

Pin

Lox

Pin Lox

Compatible with 60mm Frame System

60mm

Rear Connection

Square profile used to
90° connect three or
more cabinets/frames

One-quarter round profile used to 90° connect two cabinets/frames

pinlox - used for connection
between frames

pin - used for connection
between frame and profile

pin without plastic shelf can only be used for connection between frame and cabinet

Floor structure without accrssories

Fan for Heat dissipation

Side lock for convience, you can just lock the Floor structure instead of lock the cabinet

Upgraded floor tile construction
adds fan and side lock

With gradienter
Can easily adjust Flatness

Floor structure without gradienter

gradienter

Lowest Set

Loose fast-lock
And adjust foot cup

Push the adjustment button

Lock fast-lock Highest set

145mm

By loosing the fast lock to adjust the foot cup, can easily adjust the height

Also this makes it capable dealing with rough surface

105mm

Floor

Wall

Final effect

Front maintenance

1. Attach the profile to the wall by screw
2. Connect the connection plate with the profile by M6 screw
3. Attach cabinet without module to the corner and use the M6 screw through the mounting hole to connect connection plate

4. Then attach the cabinet near the previous one and lock the fast lock or top lock between them
5. Then install the module

MIP

Isotrpic

Emission

X- GOB

LEDS

PCB

GOB

10 IMPORTANT

Environment
Protection

Anti UV

High / Low
Temperature

Dustproof

Shockproof

Robust

Anti Static

Humidity
Proof

Seawater
resistant

Water
resistant

Eye Safety
