Yes, the Ventana® display

Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

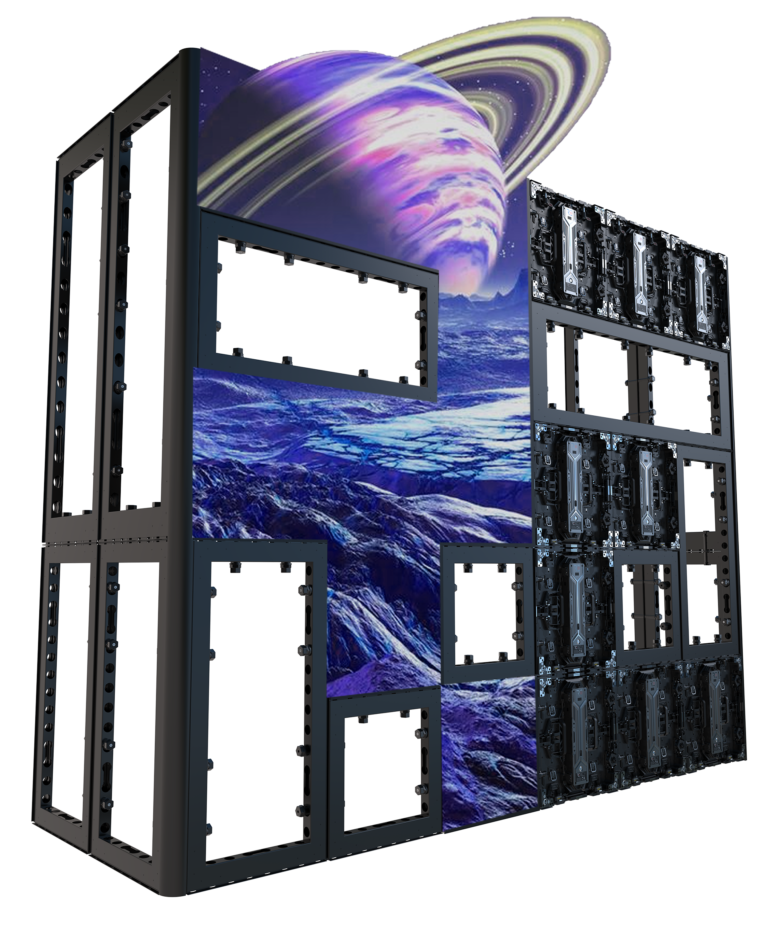

Perfectly Connect With 60mm Frame

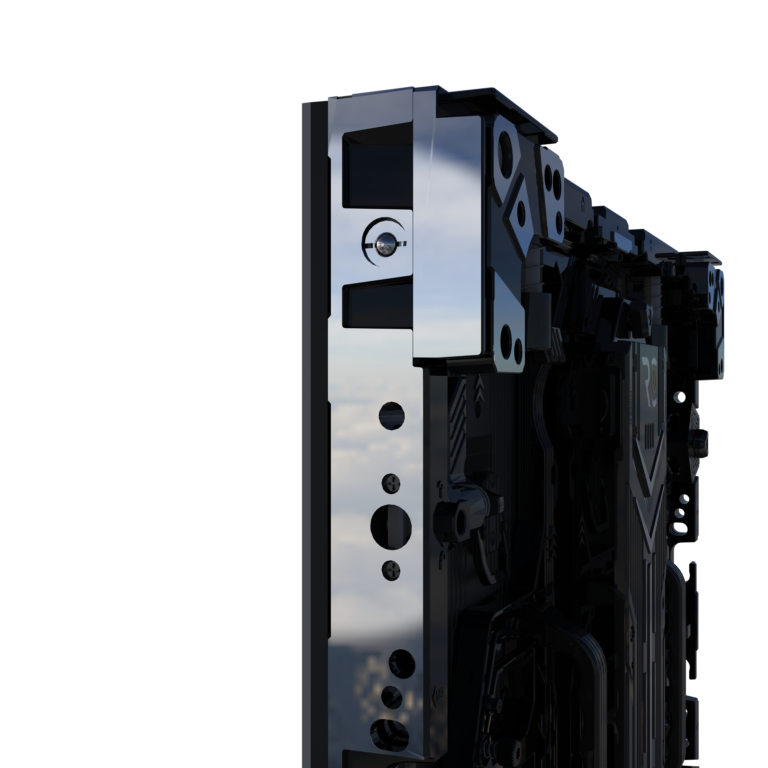

500 Croner can be attached to the corners of the RE cabinet and allowed to vary its thickness to match different frame thicknesses, so that the module is perfectly aligned with the frame. Also, the corners give the RE a switchable screw hole for rear connections with different frames.

Cover The Back? Decorate It!

By default, all unlocked locks are red, and after locking the lock will display black and yellow, you need to make sure all locks are not red to eliminate the possibility of falling.

Also, our module and brain box has a small defect status that can be pushed to the left or right, while the right side is black and the left side is red. If you find any modules in trouble, you need to push to the left to warn people.

Combining Rigidity And Flexibility

The S-lock, the lock between the module and the cabinet, combines a normal lock with a traditional Chinese mortise and tenon structure.

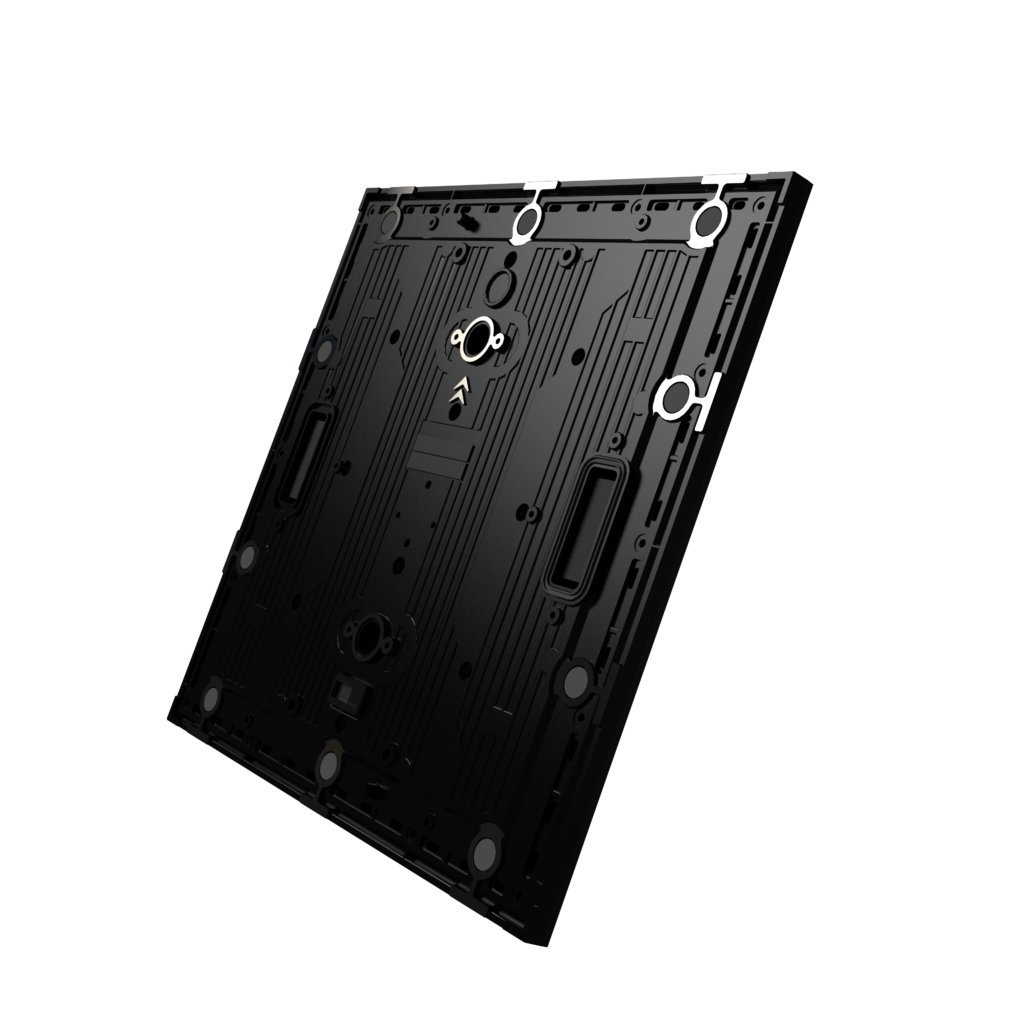

For front maintenance, you need our tool which contains two magnets and one sucker, magnet is for unlocking the s-lock.

Rental Here
Only RX

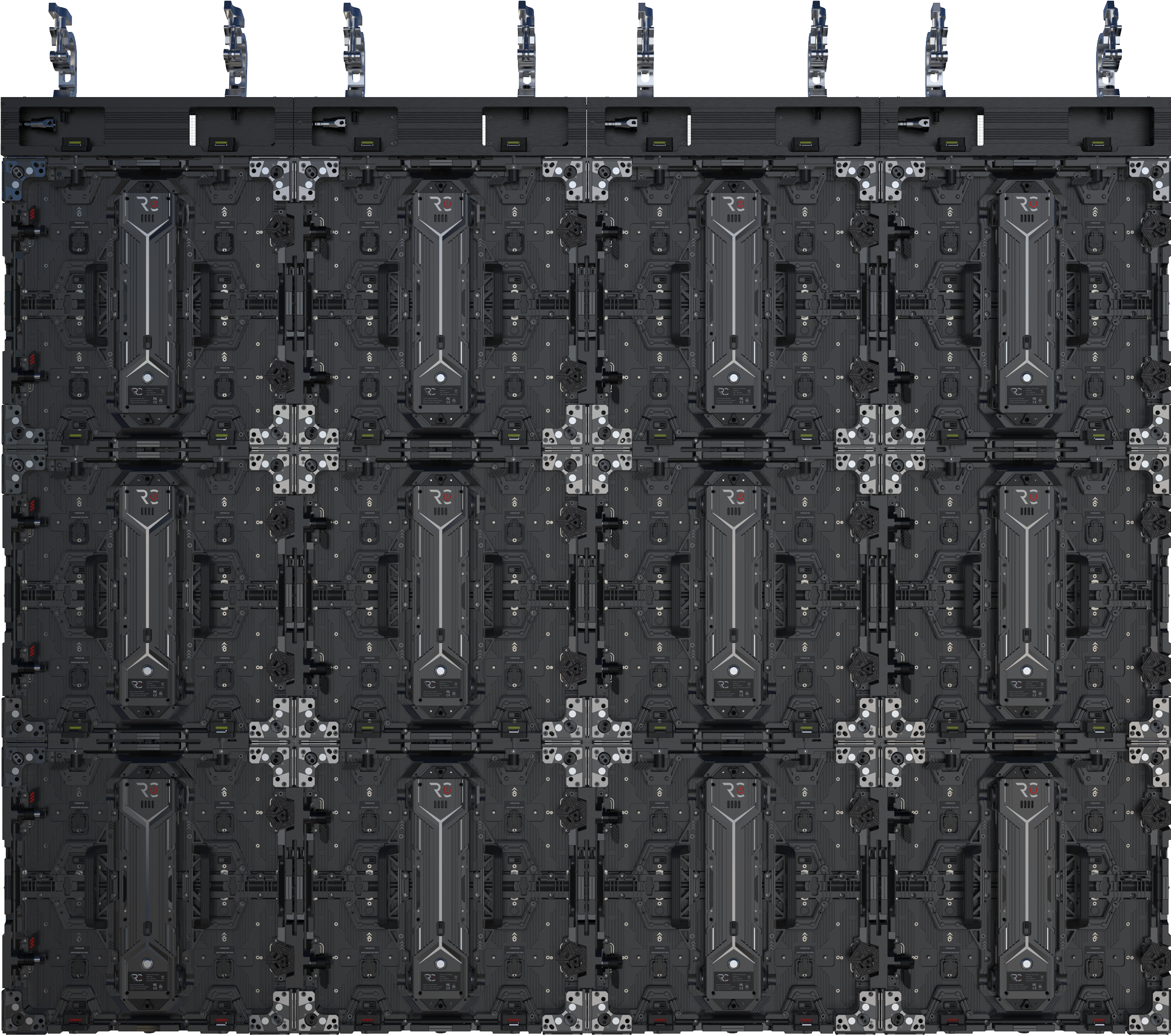

RX inherits the strengths of the VX series as an all-in-one LED screen, and in addition to frame connectivity and 90-degree viewing, it has standard rental features such as stacking, hanging, flooring, and is ruggedized for multiple applications such as stage or xR or Virtual Production.

Replace All Corner & Cube by RX

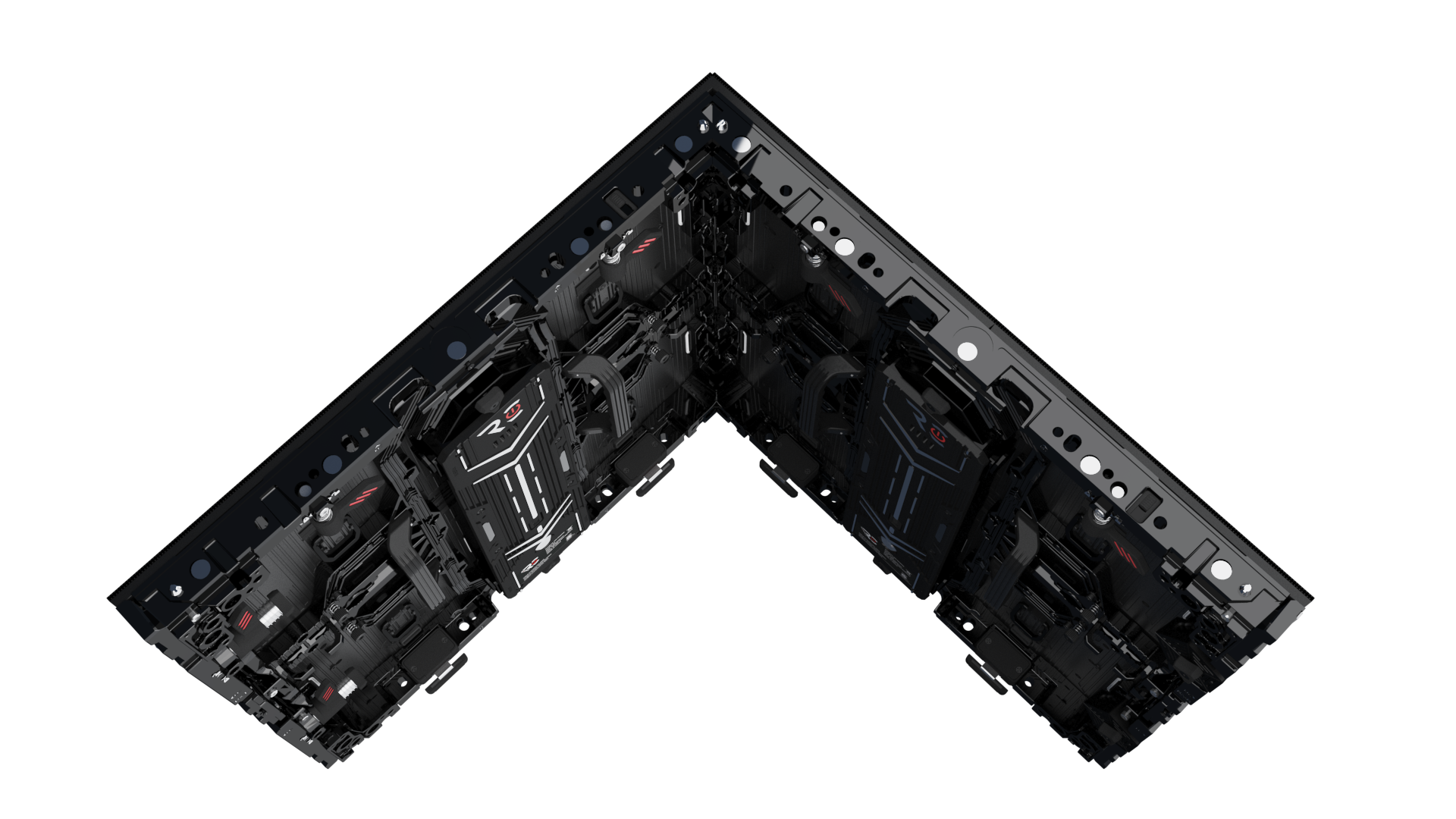

The RX cabinet and module can be cut 45 degrees at the edges then assembled together to make either a 90-degree corner or a cube.

The best part is that even after the cut, we have several parts accessories that can be attached to the RX to give it the same functionality as a normal RX cabinet.

Such as the 500 corner, connect compatibility, back plate, etc.

Curved Surface Splicing

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Aluminum die-casting cabinet design

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

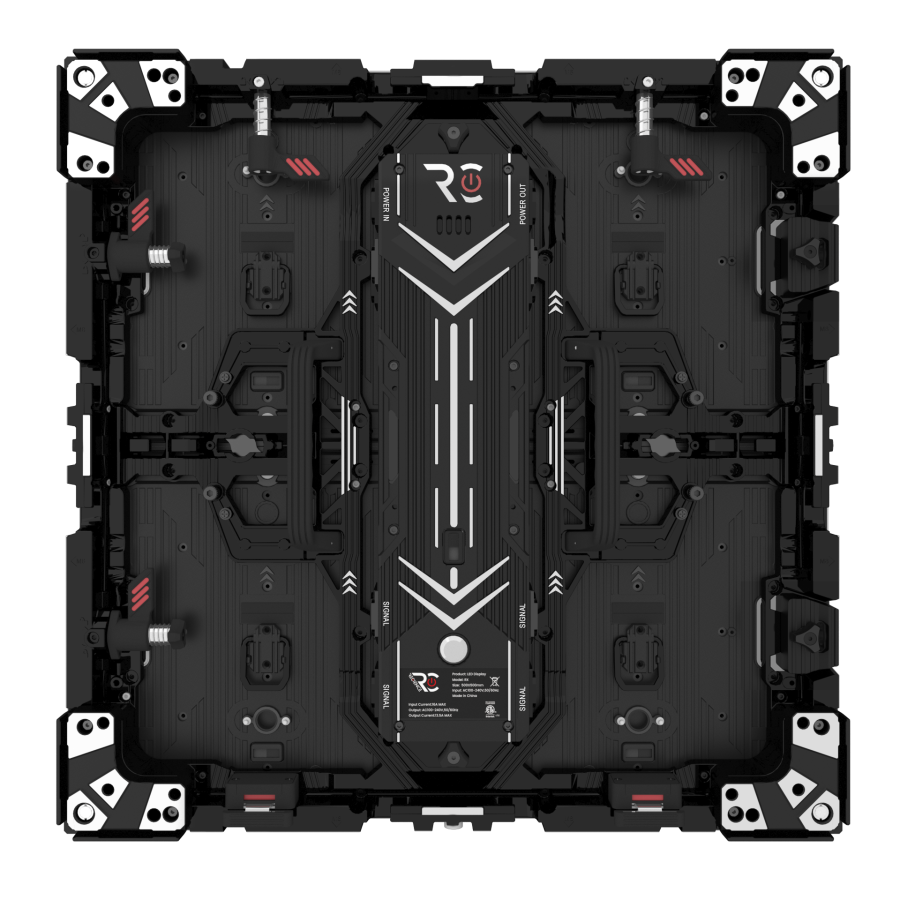

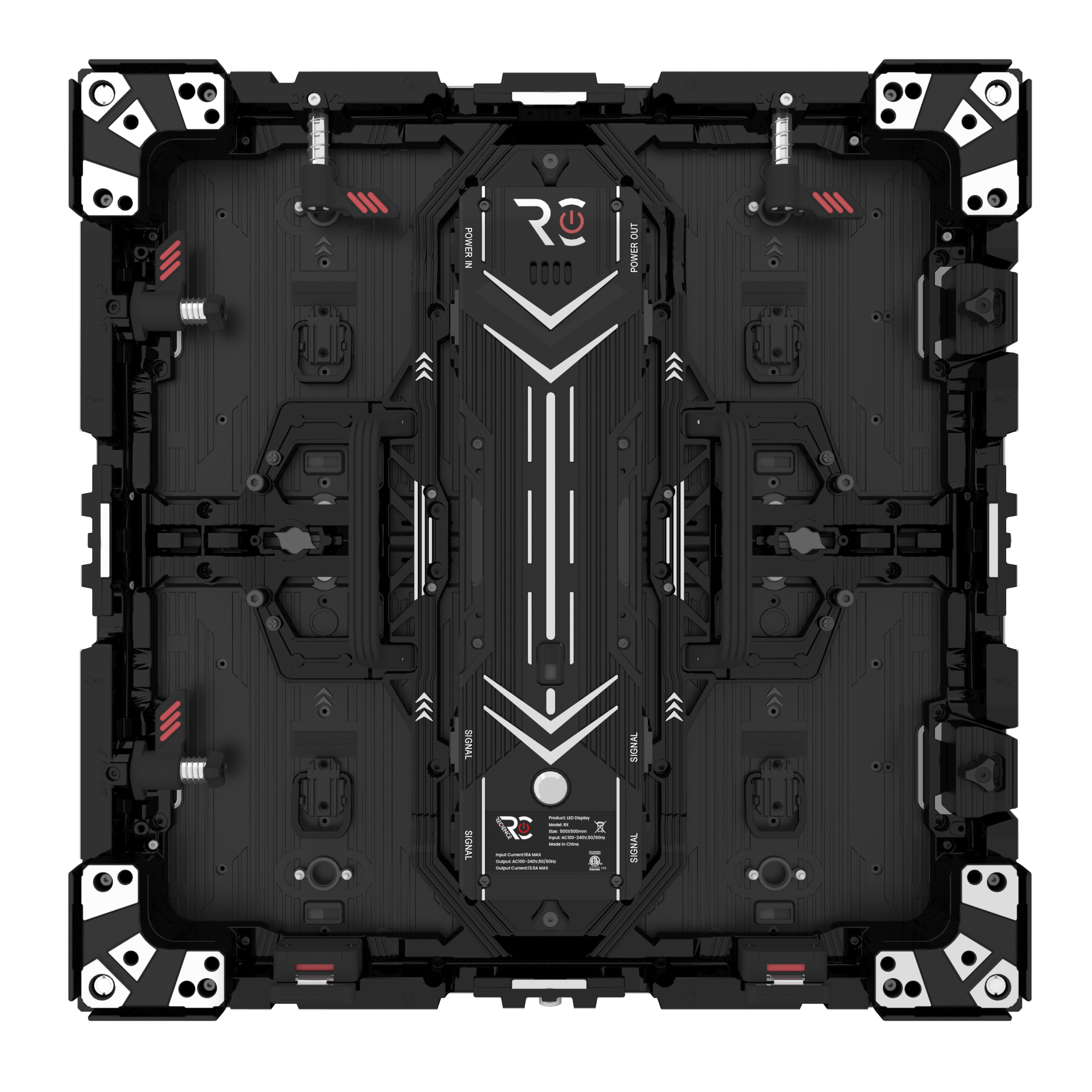

s3

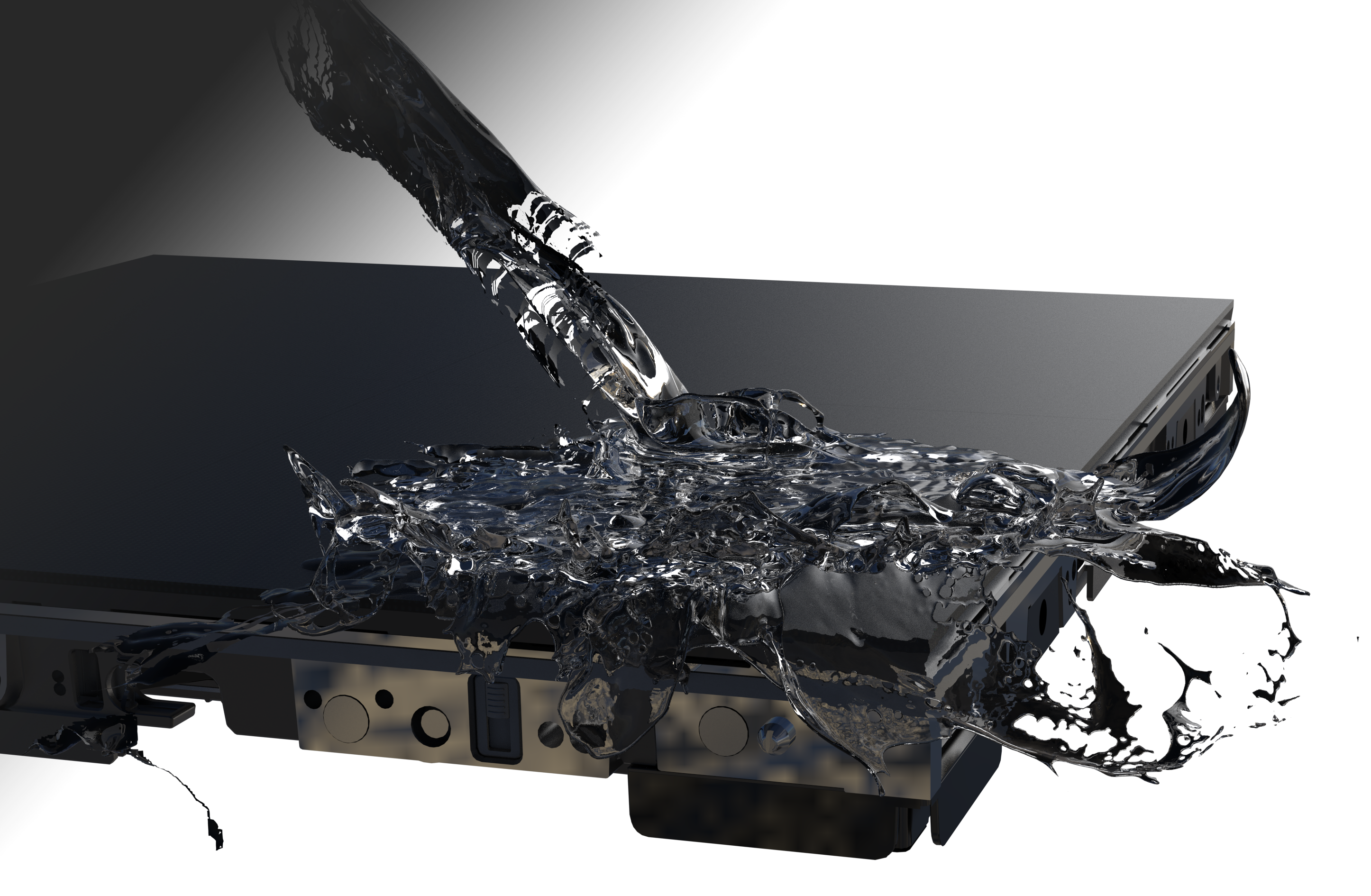

Waterproof And Impact-Resistant

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Multiple Choice

          Our products have multiple boxes for your choice

Outstanding Display

         Our products can be used in a variety of Spaces

Technical Parameter

Item

ModuleParameter

CabinetParameter

Specification

Pixel Pitch(mm)

Pixel Structure

Technology

Pixel Density(dot/m²)

Module Size(W*H)(mm)

Module Resolution(W*H)(dot)

Refresh Frequency(Hz)

Brightness(nits)

Drive Mode(Scan)

ContrastRation

Cabinet Size(W*H*D)(mm)

Cabinet Material

Cabinet Weight(kgs)

Maintenance Methods

Color Temperature – Default

Color Temperature – Adjustable

Chromatic Uniformity

HDR Mode

Horizontal Viewing Angle

Vertical Viewing Angle

Grey Scale Processing

Frame Rate(Hz)

Protection Level

Max. Power Consumption(W/m²)

Average Power Consumption(W/m²)

Working Temperature and Humidity Range

Storage Temperature and Humidity Range

Service Life(H)

Mean Time Between Failure(H)

Dual Power supply

Dual receiving card

RX1.95

1.95

SMD1010

GOB

268324

250*250

128*128

7680

1000 nits

16 scan

≥10000:1

500*500*70

Die-cast aluminum

Around 9.2kg/Panel

Front/Back Maintenance

6500±200K

3000 – 10000 K, Adjustable; ≥98%

±0.003Cx, Cy

Support

160°

160°

50/60 Hz

Frame Rate(Hz)

IP65/IP30

Around 600 W/m²

Around 200 W/m²

-20℃~+50℃,10%~95%RH

-40~+70℃,10%~95%RH

≥100000

≥10000

Yes

Yes
