INDOOR – P1.25 P1.86 P2.5
Two modules

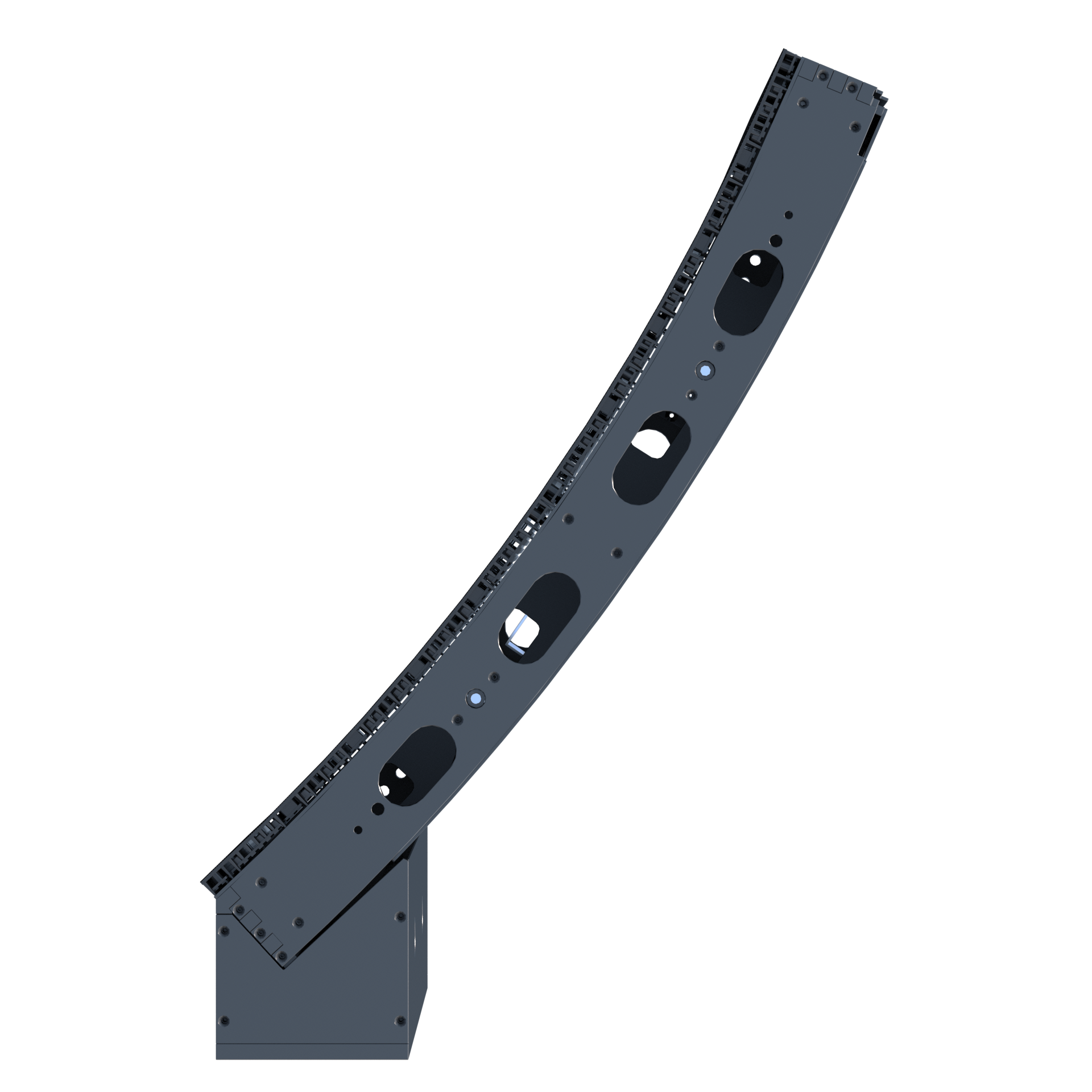

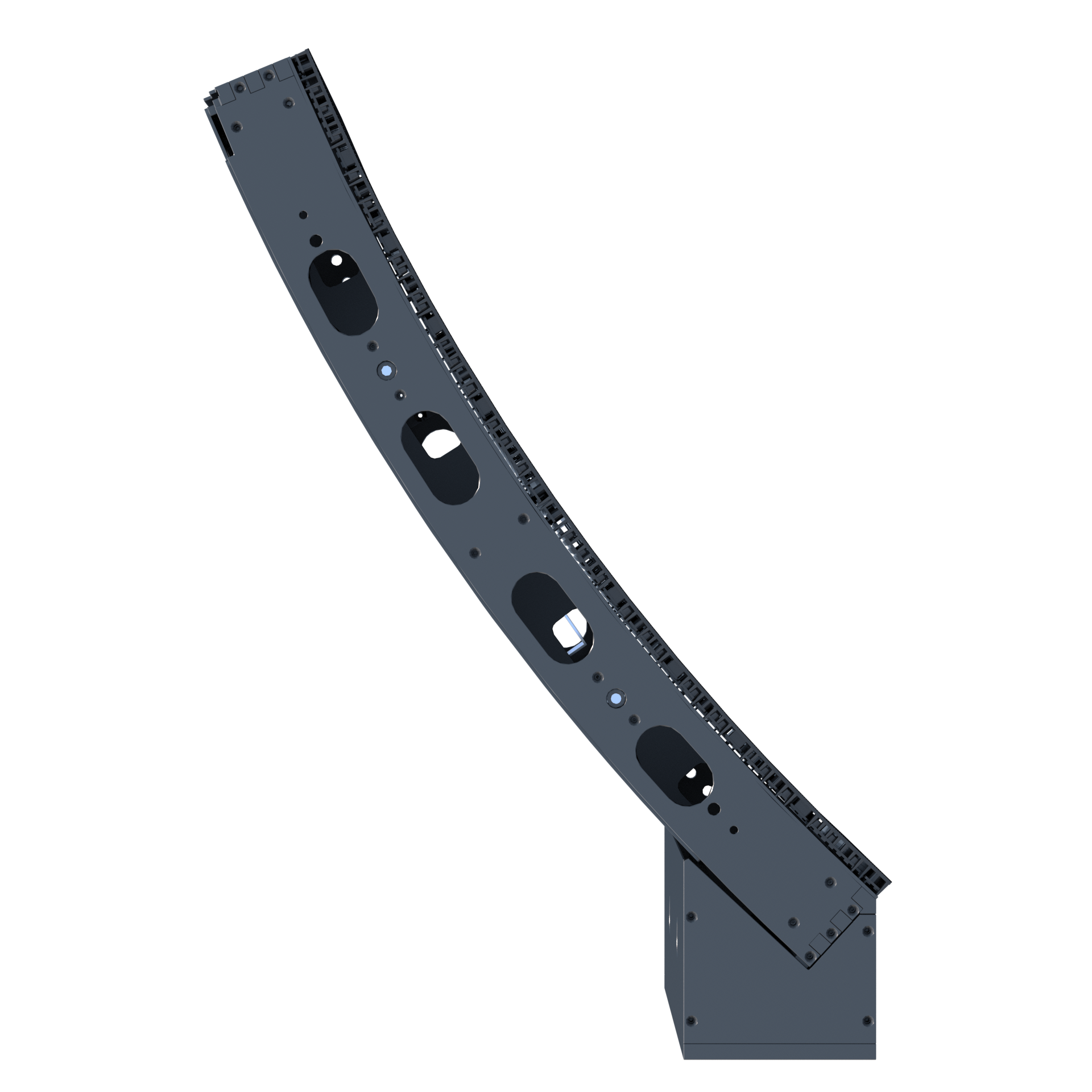

Curved Module

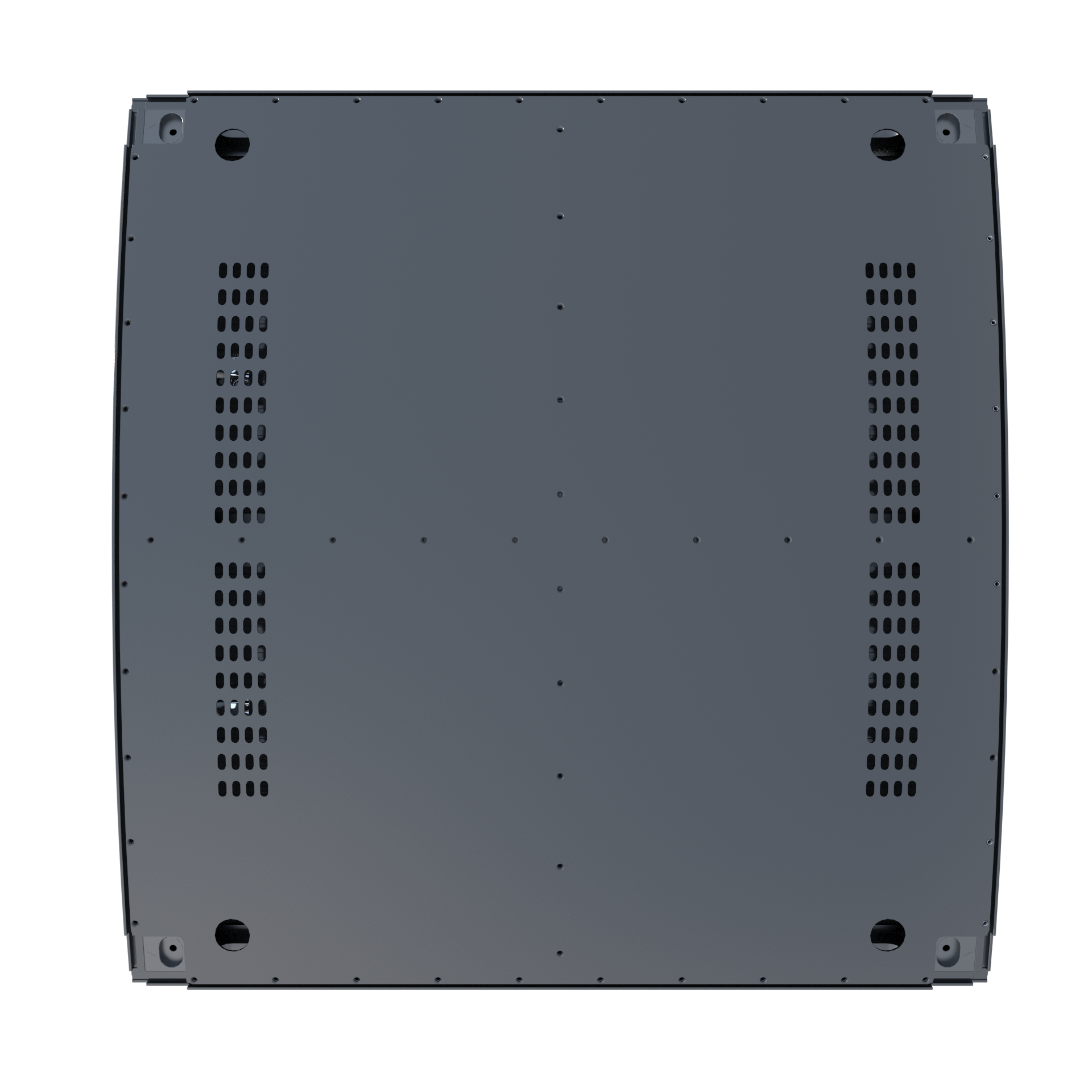

Cabinet size : 640 x 640 mm
Module radian : -60° ~ +60°
Cabinet Thickness : 75mm
6 panels shape circle
Inner Radius ≈ 600mm
* This radius has been minus the thickness of the module
6 panels shape circle
Inner Radius ≈ 611.15mm
Specification
FX Indoor
Technology
XGOB
Refresh Rate
3840Hz
Contrast
6000:1
Viewing Angle
160°(H) | 160°(V)
Environment
IP30

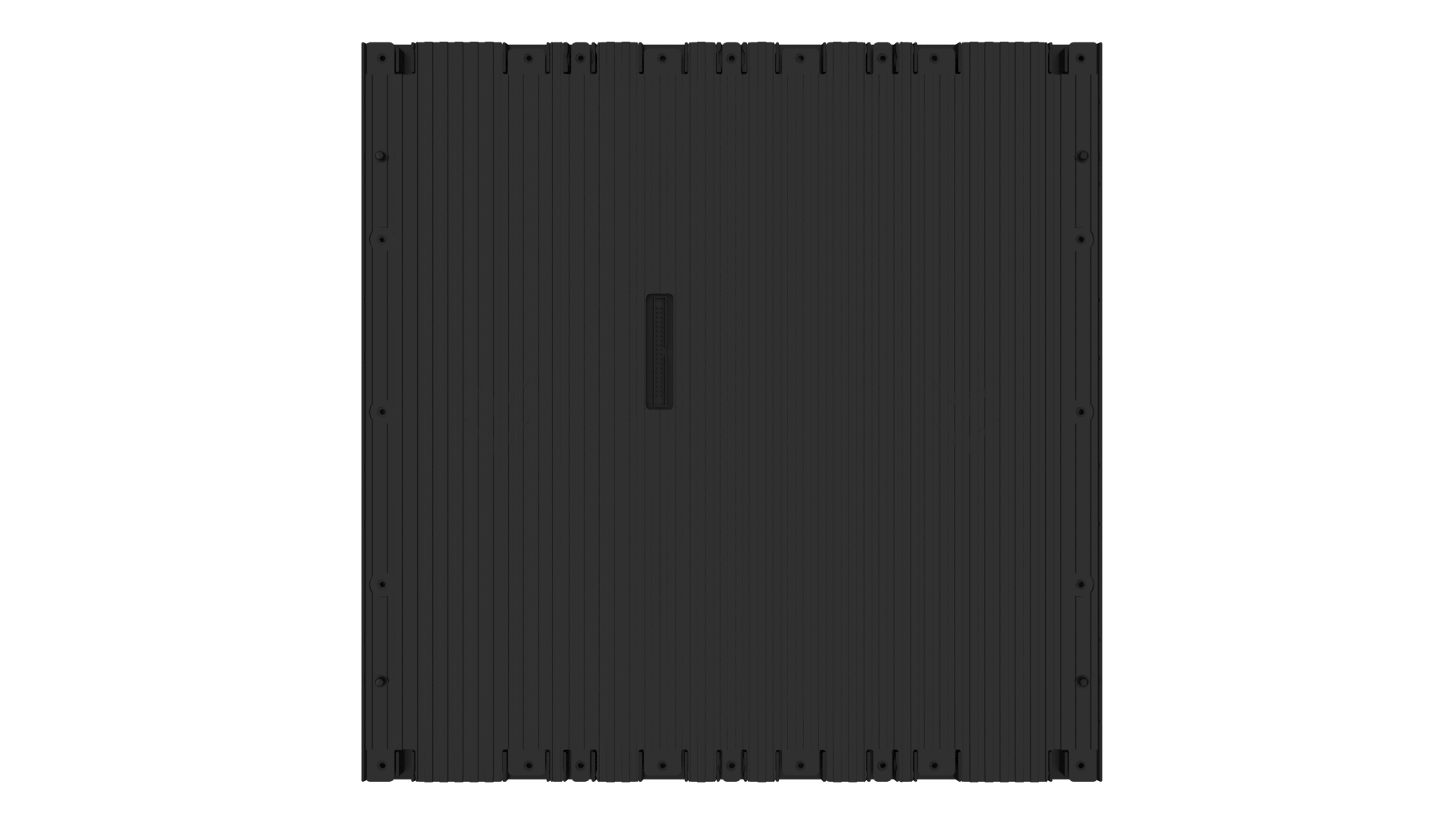

Module Size
320 x 320 | 320 x 160 mm
Pitch
P1.25 / P1.86 / P2.5
LED kind
TOP1010
Weight
0.8 kg / Moudle
Certification
RCM
*The specifications are for reference, actual values may vary.
Tunnel

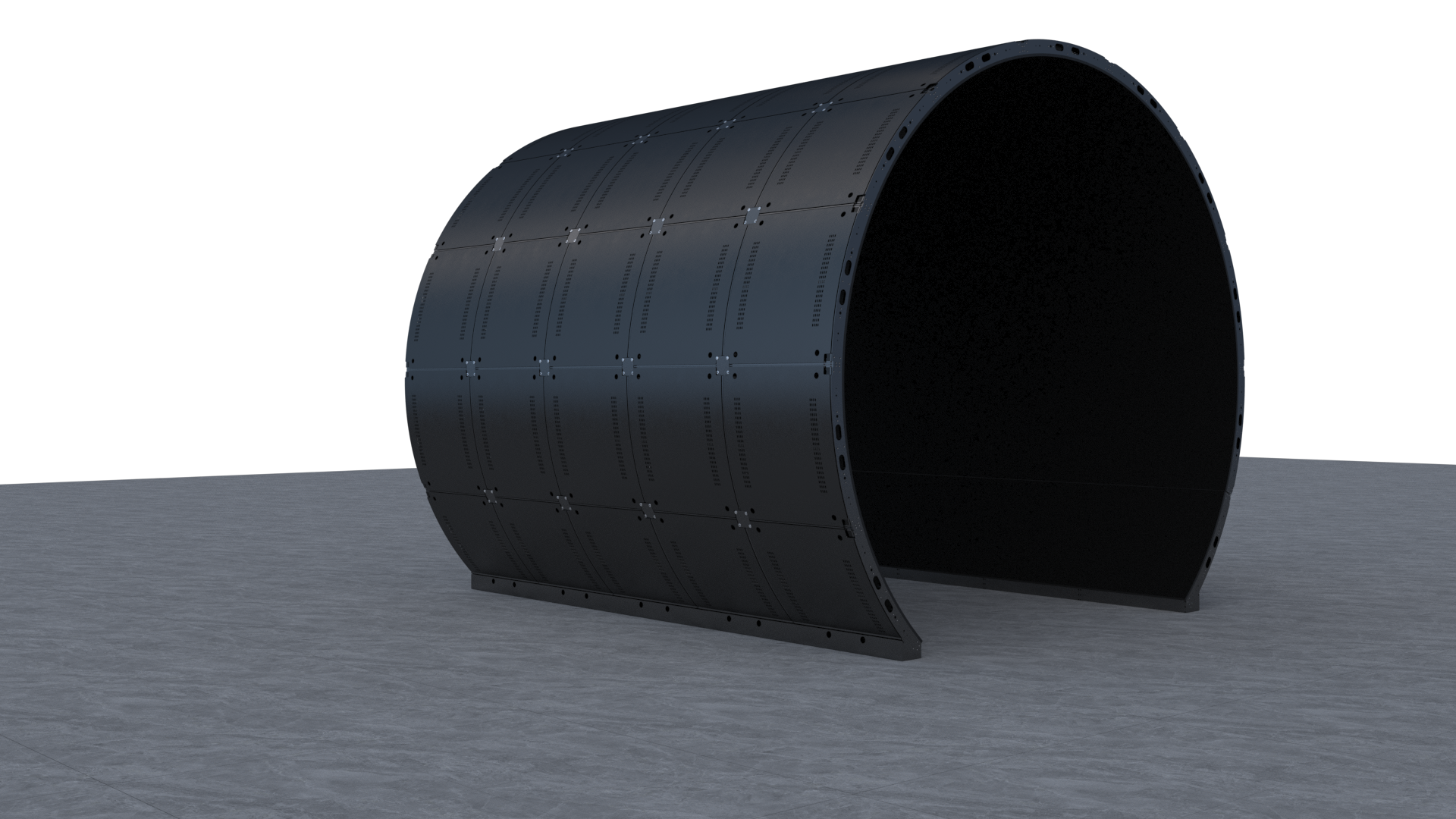

Tunnel Module
Inner Curve Length: 640mm
Module thickness: 75mm
640 x 640 mm cabinet: 55 pcs
320 x 320 mm module : 220 pcs
